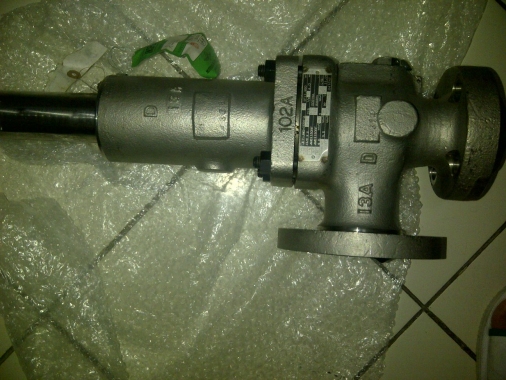

LAIN-LAIN: Safety Relief Valves (Merk Moyotama - Original Jepang)
Categories
- IGT TESTING SYSTEMS
- GRAPHIC ARTS
- PAPER
- INKS & CHEMICALS
- PACKAGING
- OTHERS
- EMCO
- QS FIBRE
- HUME HOOD
- KG BEARING
- CLEANER DIESEL FUEL (DEBUG)
- PULSARLUBE
- Electrochemical
- Electromechanical
- Mechanical
- RS COMPONENT
- LEROY SOMER
- METAL PROTECTOR
- OXYGUARD
- PROBES
- HAND-HELD
- MONITORING & CONTROL
- SINAPSE - Print Simulators
- GEOTECHNICAL TESTING EQUIPMENT
- PERET
- BATU ALAM DARI JAWA TIMUR
- LAIN-LAIN
Specification : ===================
- Model: JLT-JNO-15SO-A
- Design type: conventional.
- Size: inlet x outlet : 1 1/2 x 2 inchs.
- Body: SCS13A.
- Nozzel: SUS304.
- inlet -outlet flange: ANSI 150 RF smooth
- Spring : SUS316.
- Gasket: V#563(SUS316).
- Cap type : screwed
- Fluid &state : FLOCULEN ( LIQ).
- Required cap: 100 L/H
- Set Pressure : 3.5 KG/CM2G
- Relieving temp: 30 deg cel.
- Spring set preure : 3.5 KG/CM2G
- Blow down: 10 %.
- Max valve cap: 215L/Min.
- Ready stock : 1 unit.
- Harga SGD : 2500,--
