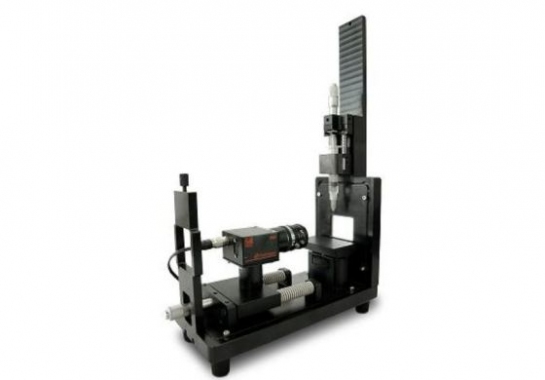

The trend to water-based bonding, coating and printing on plastics has made solving wetting problems an importnt challenge, the contact angle meter covers the increasing demand for rapid wetting tests.
Feature
- software working on WindowXP, Window7 32 bit
- contact angle measure range: 0 - 180 degree
- static contac angle
- accuracy : ±0.1 degree
- surface free energy calculator
- 4 mode capture
- 2 mode manual capture
- data export to Excel
Technical Data
| Max. sample size | 40 x 25 mm |
| Connecting type | Frame Grabber, USB or 1394 |
| CCD tpye | 90 frames / sec or 30 frames / sec |
| Contact Angle range | 0 - 180 degree |
| Light source | White LED module |
| Accuracy | ±0.1 degree |
| Power Supply | 110 - 230 VAC |
| Operating System | Window |
