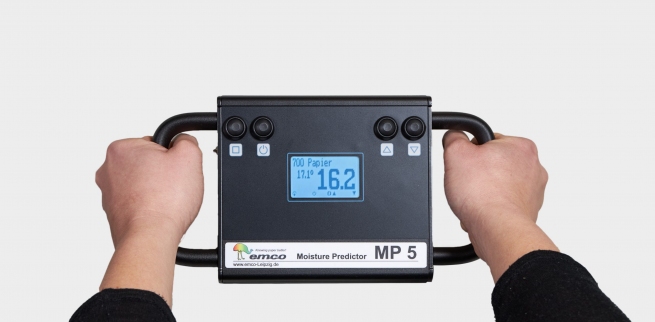

EMCO: emco MP 5 Moisture Predictor
Categories
- IGT TESTING SYSTEMS
- GRAPHIC ARTS
- PAPER
- INKS & CHEMICALS
- PACKAGING
- OTHERS
- EMCO
- QS FIBRE
- HUME HOOD
- KG BEARING
- CLEANER DIESEL FUEL (DEBUG)
- PULSARLUBE
- Electrochemical
- Electromechanical
- Mechanical
- RS COMPONENT
- LEROY SOMER
- METAL PROTECTOR
- OXYGUARD
- PROBES
- HAND-HELD
- MONITORING & CONTROL
- SINAPSE - Print Simulators
- GEOTECHNICAL TESTING EQUIPMENT
- PERET
- BATU ALAM DARI JAWA TIMUR
- LAIN-LAIN
FeaturesMeasurement on the stationary and warm running roll
For mobile and non-destructive moisture determination of paper, paperboard and pulp in stacks and rolls
Quickly and highly accurate measurement using a non-destructive method
Non-contact IR temperature measurement of paper web with 90° optics
Automatic temperature compensation
Small, handy, applicable everywhere
Without sample preparation
Automatic data logger with storage for approx. 10,000 measuring values
Display resolution: 0.1 % water content, 0.1 K temperature
Measuring depth up to 50 mm
Measuring range: 1 to 25 % water content
Communication set (PC interface, software), data transfer to PC or directly to portable printe
Applications
Determination of moisture for paper, paperboard and pulp
Incoming goods inspection at stacks and rolls for paper processors like printing houses, paper retailers and corrugated paper manufacturers
Process monitoring at the running roll
Quality control at finished printing products like books, catalogues etc. through the packaging
Recovered Paper Management
