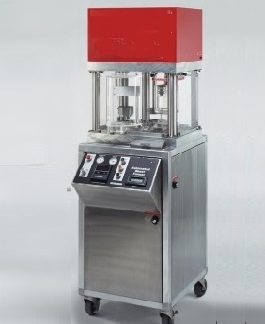

The QS Fibre Sheet Former is an automated device that takes just 5 minutes to form six highly uniform circular 60 gsm handsheets (64mm dia) perfect for strenth-testing with the QS Fibre Zero-Span Tester. Approximately 2 grams of pulp are disintegrated, conditioned, and diluted with 2 litres of water. The slurry is then poured into the sheet former's pulp reservoir and the cycle is activated with a push of a button. Five minutes later 6 dry handsheets can be removed from the pick-up bin and used for testing purposes.
Services
Electricity : Single Phase 115/230 VAC 50/60 HZ 15 Amp
Water : Filtered, potable water, standard pressure and flow rate
Drain : Floor Drain
Air : dried, filtered, 3 litres per sec at 7 bar
